NU-GUARD-31

NU-GUARD-31

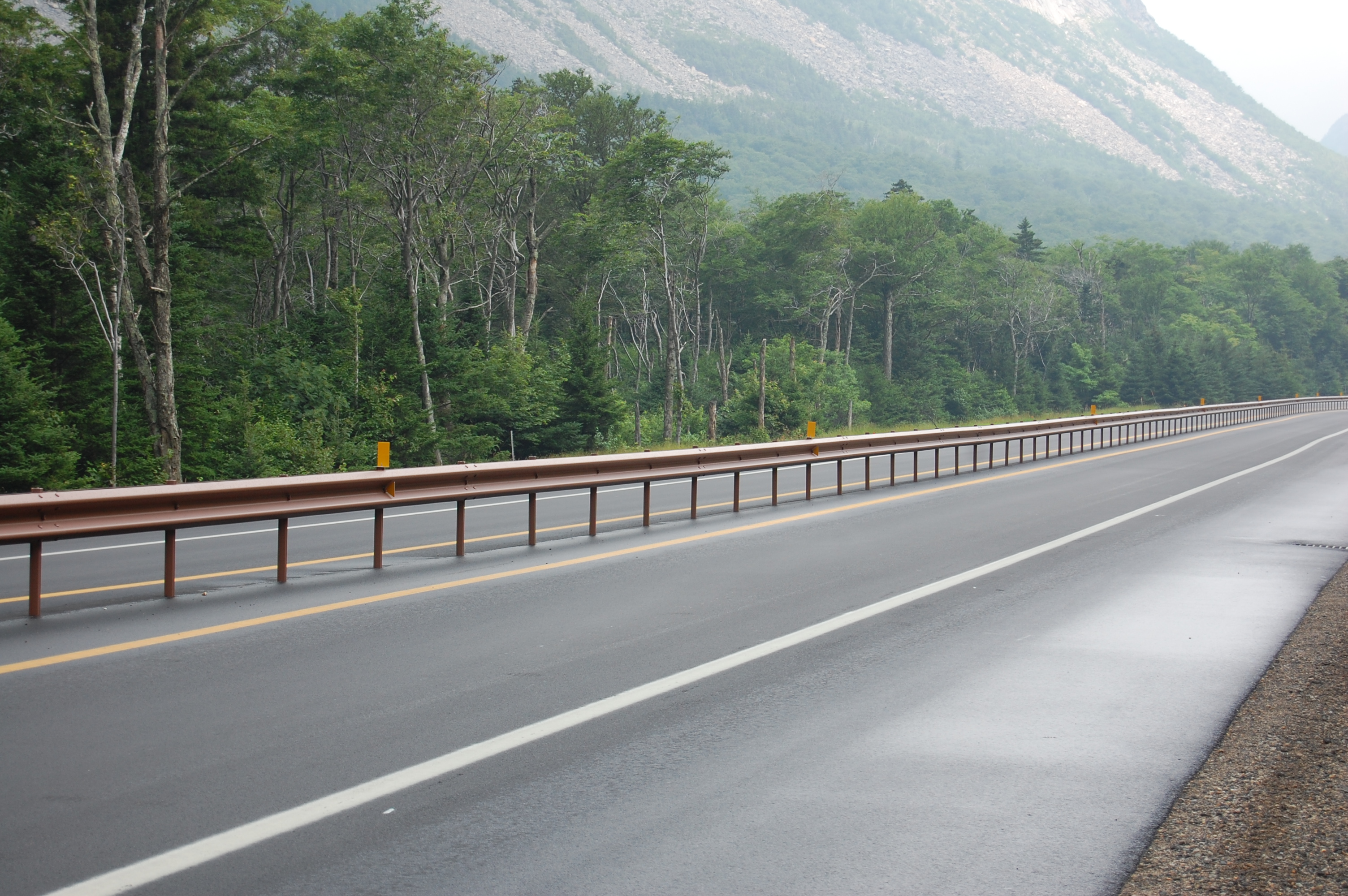

NU-GUARD-31 is a strong post guardrail system available for use without offset blocks for 31″ rail height applications. The system is crash-test proven to guard against collisions with fixed objects or hazards.

System features include:

  • Crashworthy to NCHRP 350 and MASH criteria.
  • Does not require offset blocks.
  • FHWA accepted for use on roads with design speeds up to 65 mph. (Ref. B-162)
  • RIB-BAK 5 lb./ft. U-Channel post is easier and faster to install than wood or I-beam posts.
  • RIB-BAK U-Channel posts available galvanized or powder coated.

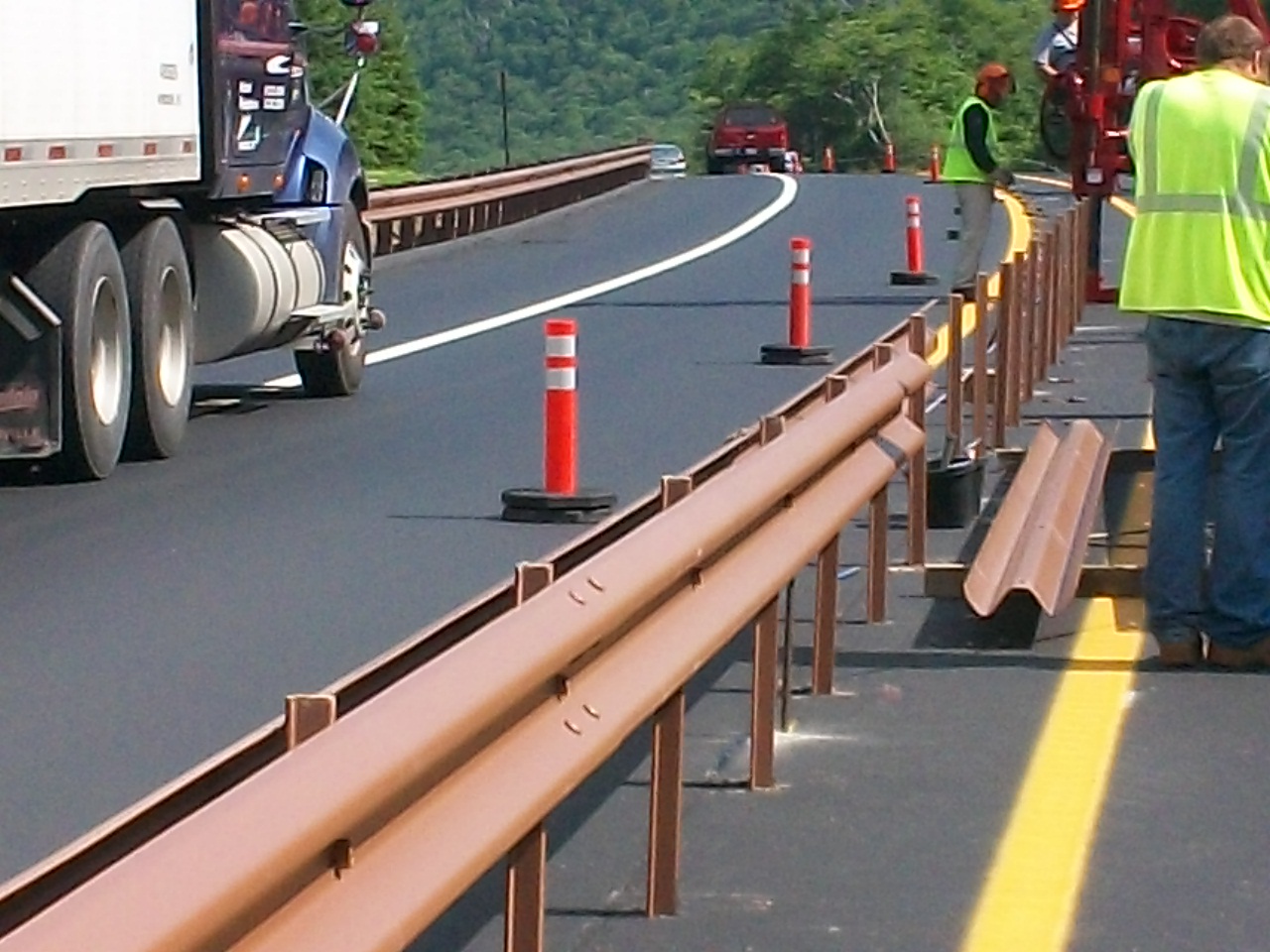

  • Approved for both roadside and median applications.
  • Median configurations for 31″ rail height applications.
  • The narrow profile of this barrier is valuable when roadside space is limited.
  • Through-bolt slot works to maintain rail height during impact.

NU-GUARD-31 Strong Post Guardrail System

Guardrail

Use with standard w-beam (AASHTO M-180, Class A or B, Type II)

W-Beam Height

31” for Roadside and Median

RIB-BAK U-Channel

5 lb./ft.; 6’ 6”; Nucor Grade SP-80

Post Spacing

6’ 3” Typical

Offset Blocks

Not Required

Slope

6 to 1 or less

NCHRP 350 Tested

TL-3 and TL-4 Compliant

MASH Tested

MASH TL-3 Compliant
